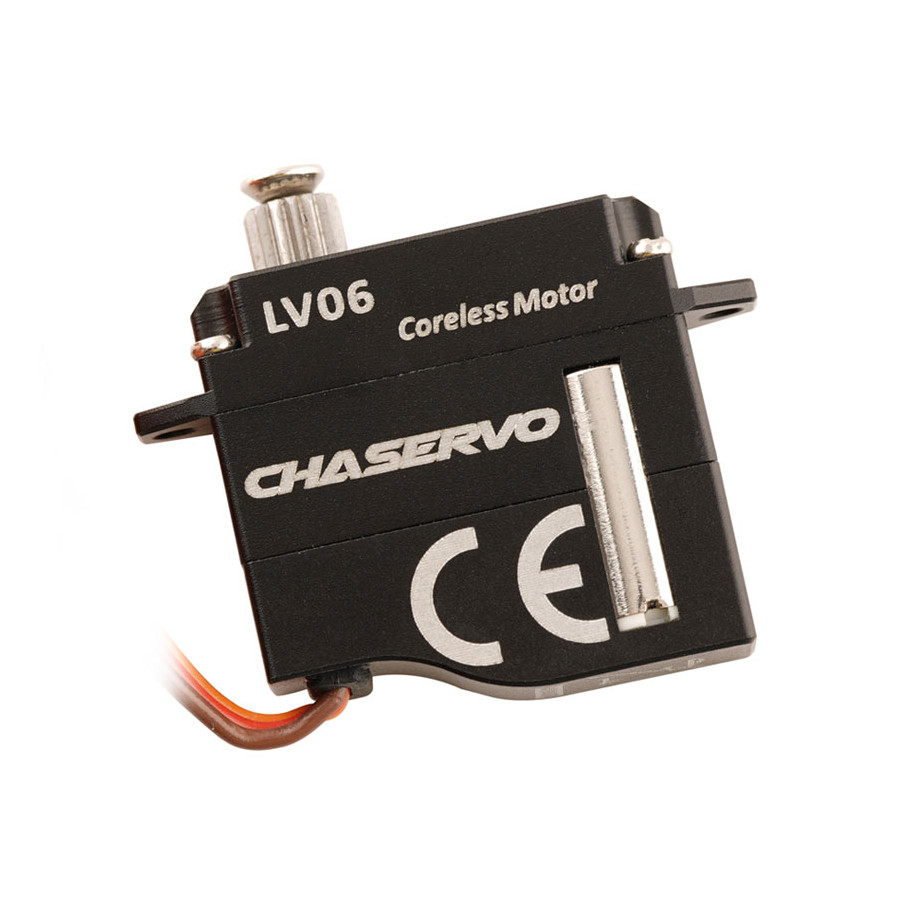

Servo Chaservo LV06 is a high-quality thin servo with a Coreless motor and an aluminum housing. The servo uses 2BB ball bearings. The voltage range is 3.3-5V. It is mainly suitable for handball, but it can be used wherever a small, powerful and fast servo is needed.
Key Features
- Weight: 5.8g
- Dimensions: 19x6x18.5 mm
- Supply voltage: 3.3-5 V
- Speed: 0.07sec/60°@3.3V, 0.06sec/60°@4.2V, 0.05sec/60°@5.0V
- Torque: 9N.cm@3.3V, 13N.cm@4.2V, 17N.cm@5.0V
- Stroke: 120° (+-60°)
- Servo cover: Aluminum alloy
- Motor type: Coreless DC
- Gears: Metal
- Type: Digital
Package Includes
- 1x Servo
- 1x Set of levers and screws
