CHASERVO is a new innovative servo brand that has won the favour of many pilots with the quality of its products. Our team has taken a liking to these servos, as have Gernot Bruckmann, Luca Baumann, Luuk Struik and many other experienced pilots.

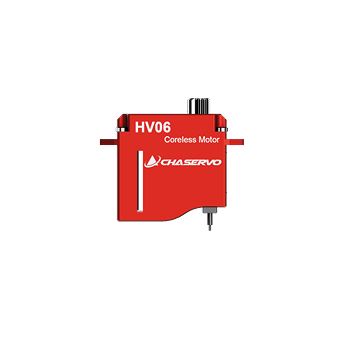

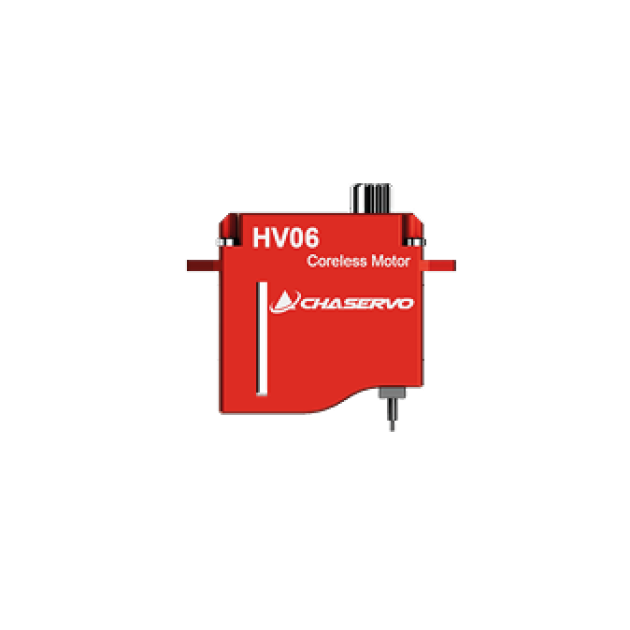

The Chaservo HV06 is a powerful 6mm HV servo that is characterized by its small size and high performance. It is ideal for a variety of modeling applications, including RC vehicles, airplanes, boats and other models that require high performance and precision in a small package.
The Chaservo HV06 is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
The holding force of up to 2.2 kg at 8.4 V makes it possible to move even heavy loads effortlessly. The turning speed of 0.06 seconds at 8.4 V is also very good.
Key Features
| Dimensions | 0.75 x 0.24 x 0.73 in (19 x 6 x 18.5 mm) |
| Weight | 0.21 oz (6.1 g) |
| Output Shaft Spline | 15T, 4mm |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 3.3 – 9.0V |
| Ball Bearing | 2 x Ball Bearing |
