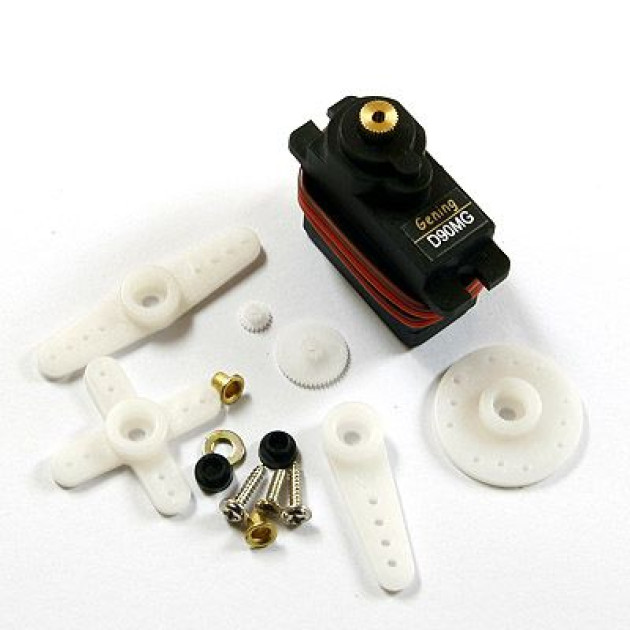

D90MG Hi-Speed Digital

SKU: N04

The product can not be ordered.

Fast, precise and high torque servo for small helicopters, 3D models and hand launched gliders.

Key Features

Full AVCS Gyro DS mode compliant
Operating Voltage: 4.8-6.0 Volts
Operating Speed (4.8V): 0.09sec/60°
Operating Speed (6.0V): 0.08sec/60°
Torque (4.8V): 2.0kg.cm
Torque (6.0V): 2.2kg.cm
Dead Band Width: ≤3usec
Dimensions: 23.6 x 11.8 x 22mm
Weight: 14g
Bearing Type: Top Ball Bearing
Gear Type: Metal Gears
Motor Type: 3-Pole Neodynium Magnet
Connector Wire Length: 180mm
Current Drain (4.8V): 5.3mA/idle and 140mA no load operating
Current Drain (6.0V): 6.6mA/idle and 150mA no load operating
