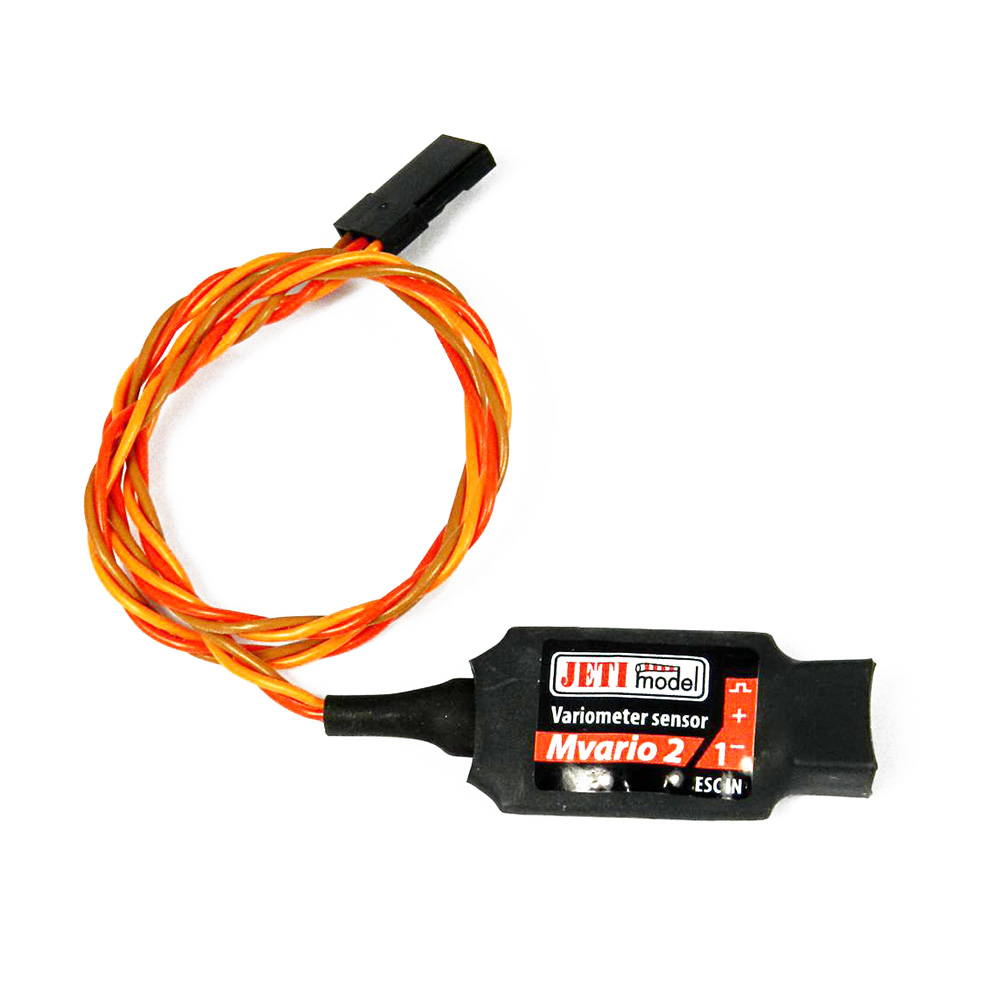

MVario2 EX rev.2


The product can no longer be ordered.

MVario2 EX is a system that measures atmospheric pressure, according to which altitude, ascent and descent are calculated. Furthermore, the recording of extremes (minimum and maximum values), signaling of change of rise / fall and the sensor also warns of exceeding the set alarm. The information from the sensor is transmitted by the Duplex system to the operator.

The manual can be downloaded here.

Key Features

  • Weight: 5g
  • Dimensions: 35x16x7mm
  • Supply voltage: 3.5-8.4V
  • Current: 15mA
  • Height resolution: 0.1m
  • Absolute / relative height accuracy: ± 9m / ± 3m
  • Height change measurement noise: ± 0.05m / s

Package Includes

  • 1x Sensor
