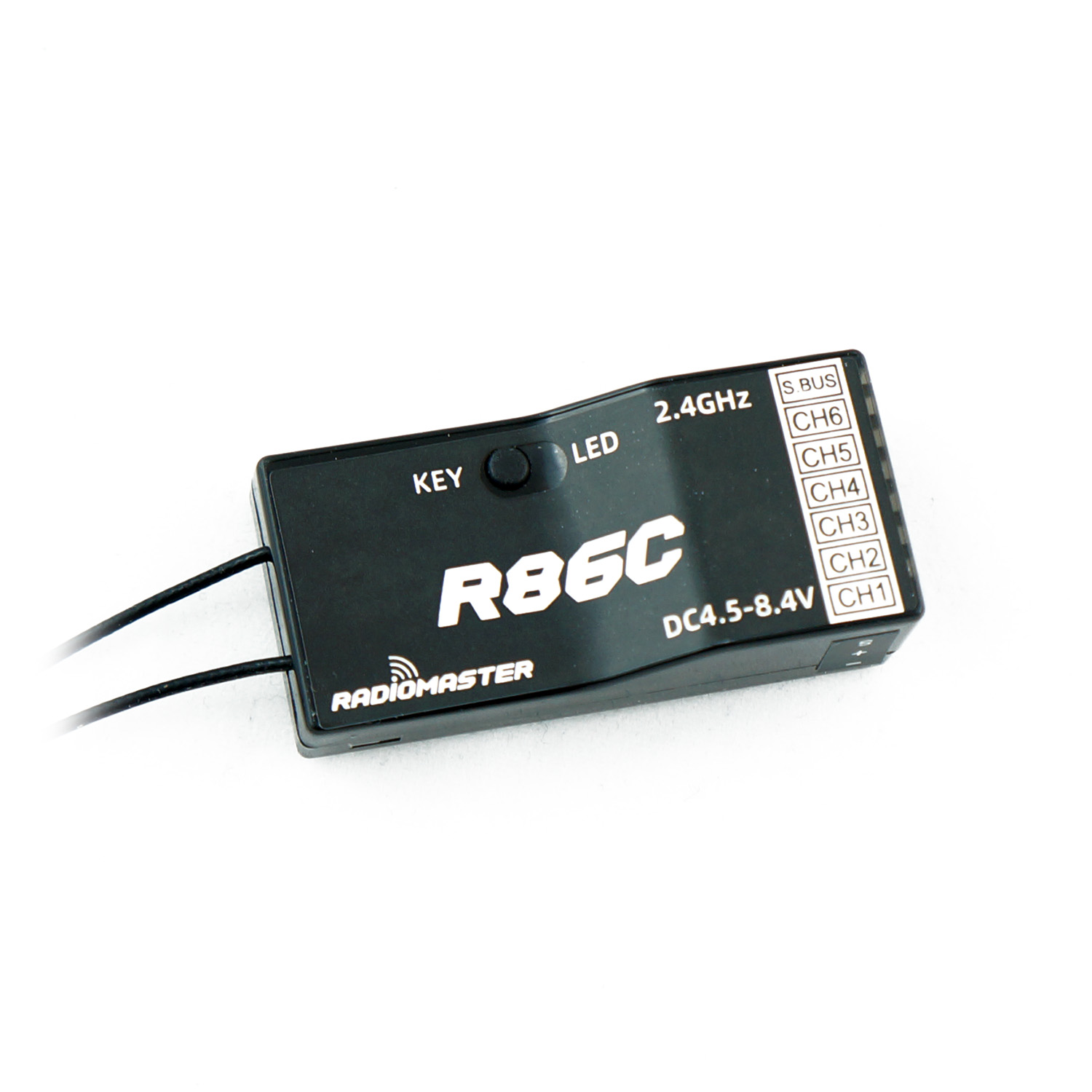

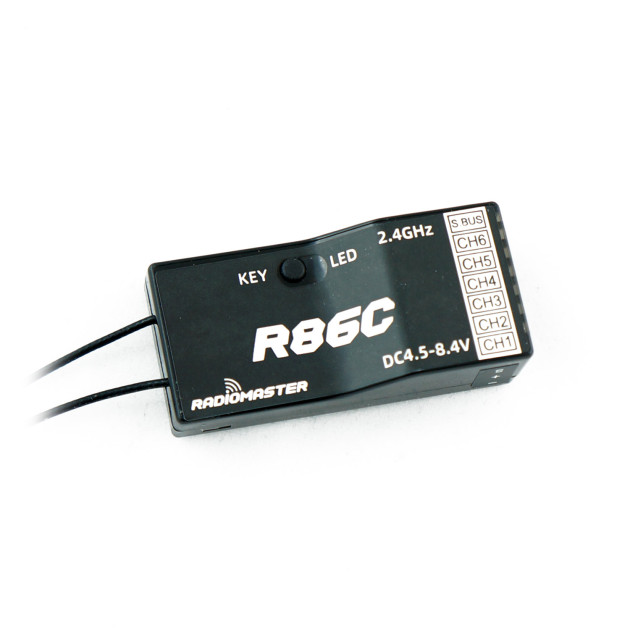

Radiomaster R86C


The product can no longer be ordered.

Radiomaster R86C is an RC receiver with Frsky D8 modulation. The receiver can be used with Radiomaster radio or older models from Frsky, which do not support ACCESS modulation. Frsky D8 is also occasionally used on radios that are part of RTF sets of airplanes or drones. The R86C receiver has 6 PWM outputs and one SBUS port.

Key Features

  • Weight: 8g
  • Input voltage: 4.5-8.4V
  • Modulation: Frsky D8
  • Number of PWM channels: 6
  • SBUS: Yes
  • Dimensions: 45x21.2x12.7mm
  • Frequency: 2.4GHz

Package Includes

  • 1x Receiver
