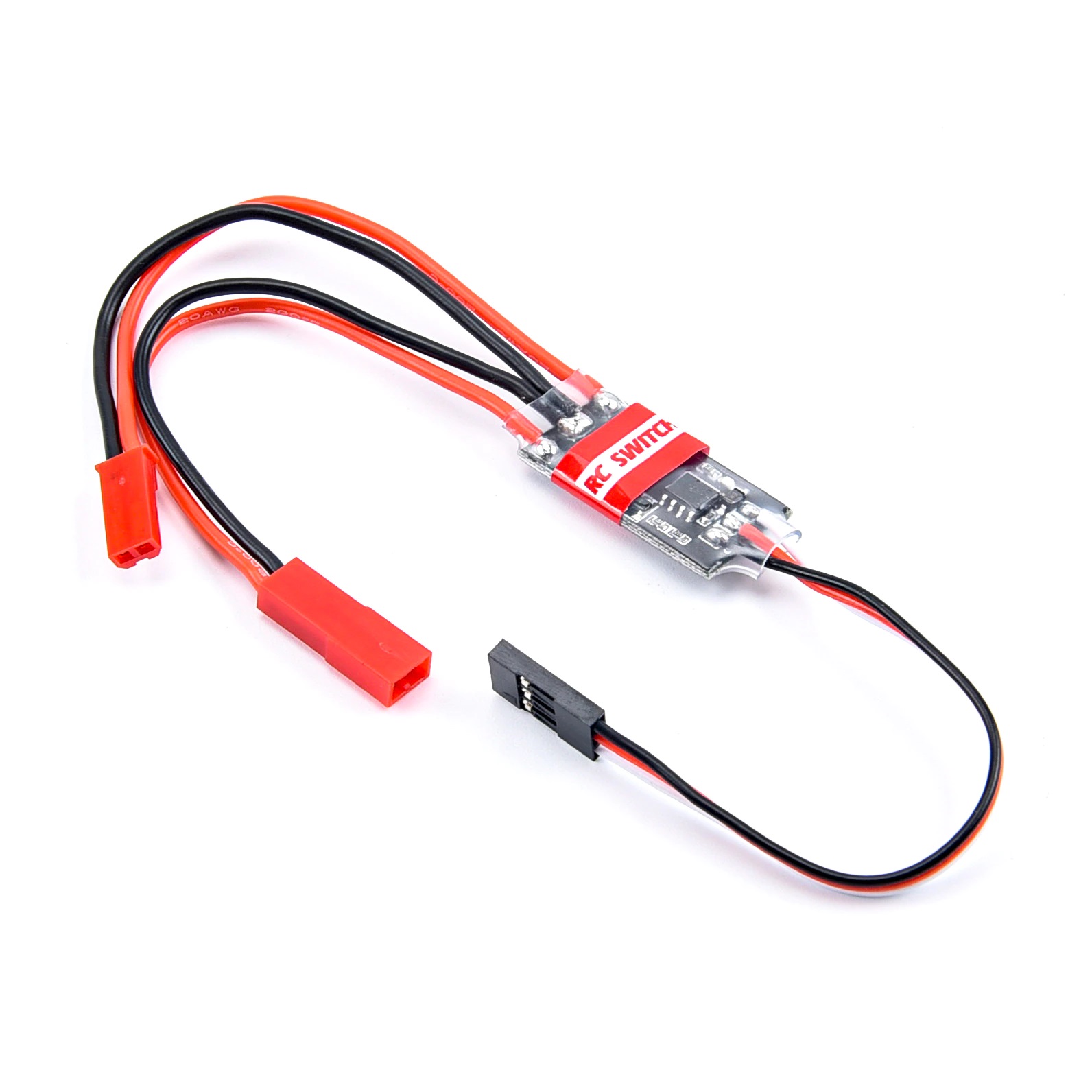

RC Switch 4-28V 8A
SKU: C58
The product can no longer be ordered.

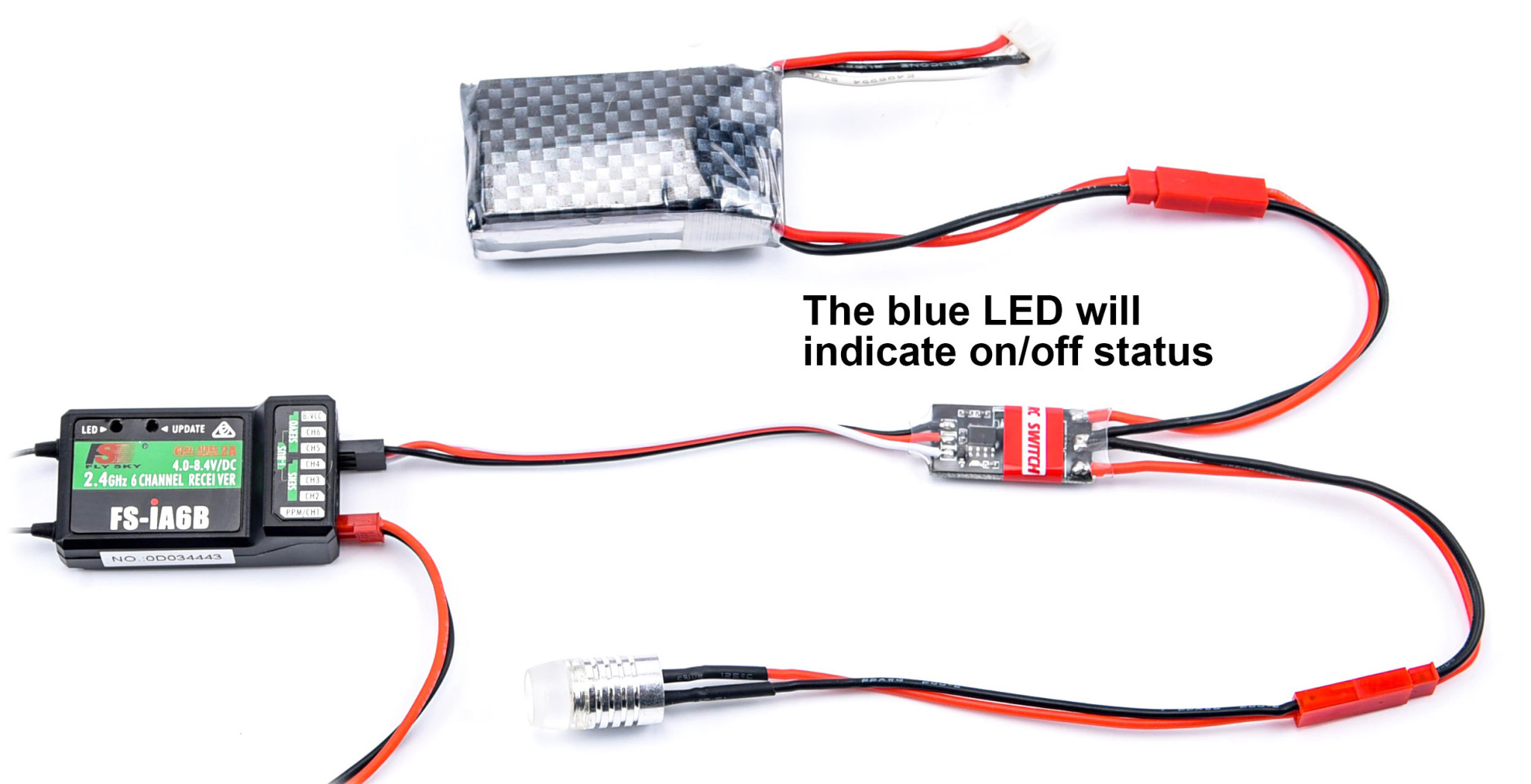

The RC switch is able to turn on and off other devices according to the signal from the RC receiver. You control the switch with any channel on the transmitter. When the PWM signal is higher than 1600uS, the switch closes. The switch opens if the signal value falls below 1400uS. Switching is indicated by an LED diode. The switch supports 3.7-28V voltage and 8A current.
Key Features
- Switching voltage: 3.7-28V
- Current carrying capacity: 8A
- Closed: PWM> 1600uS
- Supply voltage: 5V
- Weight: 7g including cables
Package Includes
- 1x RC Switch
