Mini XF5805

SKU: FPV21
In Stock
€ 18,65

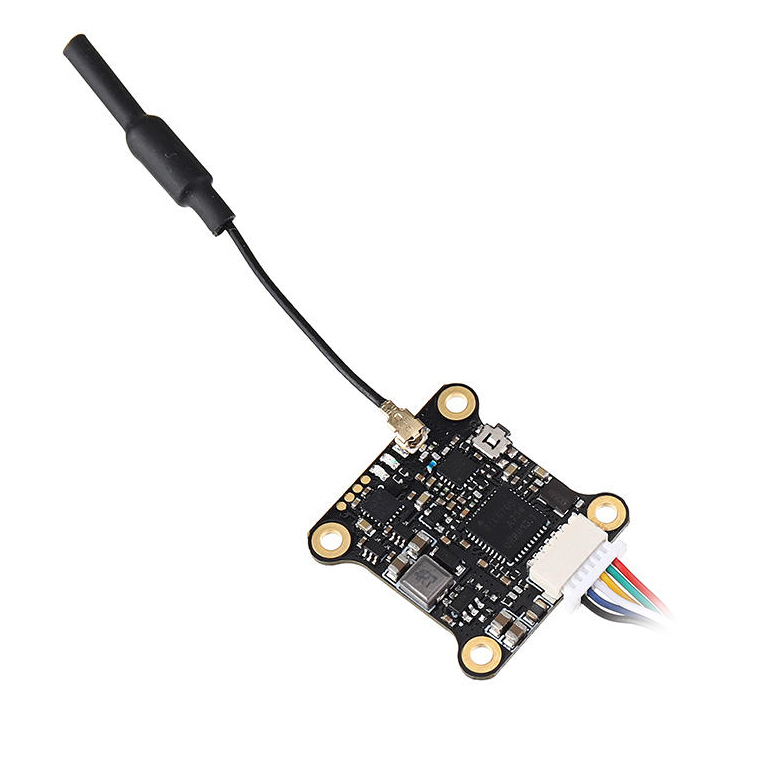

The Mini XF5805 is an affordable analog video transmitter. Thanks to the 20x20mm M2 mounting holes, it can be conveniently mounted in the required place. To maintain small dimensions, the antenna is connected with a u.FL connector. The video transmitter can be set using a button or via a data cable with the Smart Audio protocol. The video transmitter heats up a lot during operation. Place it in the model so that air can flow around it.

Key Features

  • Input voltage: 7-26V
  • Connector: u.FL
  • BEC: 5V@1A
  • Protocol: Smart Audio
  • Power: 25/100/200/300mW
  • Weight: 3g (without antenna)

Package Includes

  • 1x Video transmitter
  • 1x Cable
  • 1x Linear antenna
