FlySky FS2A

SKU: RC04
In Stock
€ 11,63

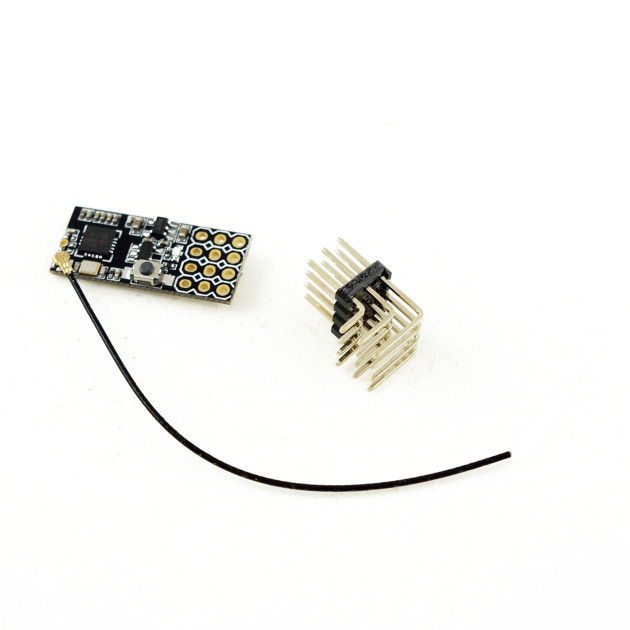

Miniature 4 channel receiver, especially suitable for indoor and park models. The connector has to be soldered into the board by the user.

Binding procedure:

  • Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver starts flashing, indicating bindind mode.
  • Set the transmitter into bind mode (make sure that you selected the AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flashing.
  • Get the transmitter out of bind mode. The receiver blue light becomes steady, indicating that the signal receive is successful.

Key Features

  • Weight: 0.9g
  • Range: up to 400 m in free space
  • Protocol: AFHDS 2A (FlySky)
  • Input voltage: 3.3 - 10V
  • Failsafe
  • Size: 11 x 25 mm
  • Power consumption: 20 mA

Package Includes

  • 1x Receiver
  • 1x Connector
