DUPLEX REX 6

SKU: RC20
Out of Stock
€ 77,50

The system is continuously improved. Thanks to online updates the improvements are easily accessible to users from any part of the world. From the very beginning bidirectional transmission has been a distinctive feature of the Duplex system, this not only handles telemetry data, but it also helps to ensure secure primarily transmission safety between the transmitter and receiver.

The Duplex EX telemetry system uses an open protocol. This gives the advantage of compatibility with a large number of telemetry sensors from both JETI model and third party producers. For the display of telemetry data you can use purposely designed equipment like the JETIBOX profi and DC/DS transmitters or you can display the data on PCs.

JETI Duplex REX receivers are designated for use with the DC/DS transmitters or the JETI transmitter modules in the 2.4 GHz frequency band.

The receivers support online updates so that everyone is able to install the latest software versions. From the very beginning bidirectional transmission has been a distinctive feature of the Duplex system, this not only handles telemetry data, but it also helps to ensure secure primarily transmission safety between the transmitter and receiver.

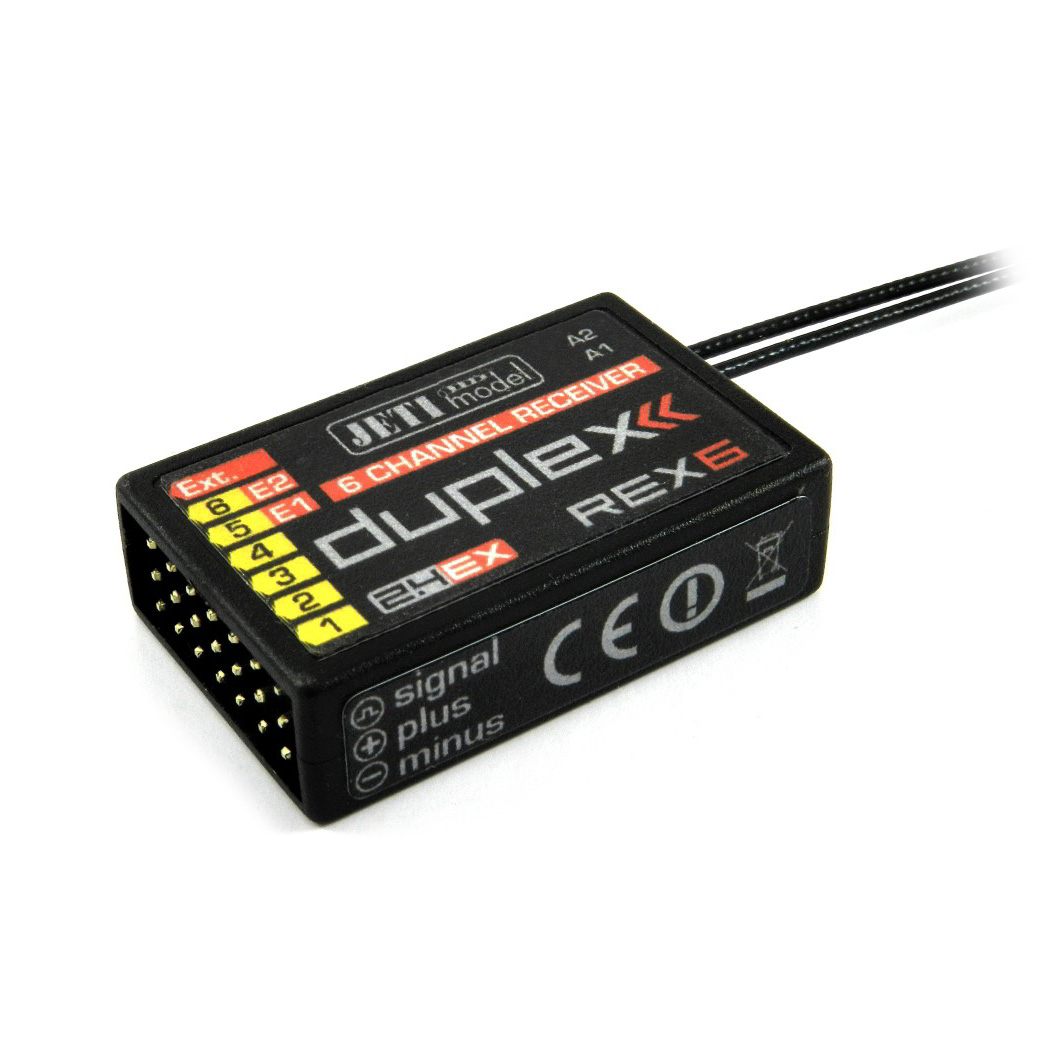

6 channel receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions.

Manual for download here.

Key Features

  • Telemetry: Yes
  • Operating temperature range: -10 to 85 ° C
  • Compatible protocols: DUPLEX 2.4 GHz EX, EX Bus
  • Supply voltage: 3.5-8.4V
  • Average current: 75mA
  • Satellite receiver support: Yes
  • Max. output power: 15dBm
  • Receiver sensitivity: -106dBm
  • Stabilization Assist: No
  • Frequency: 2.4GHz
  • Weight: 11g
  • Dimensions: 38x25x11mm
  • Number of channels: 6
  • Antenna length: 2x 100mm

Package Includes

  • 1x Receiver
