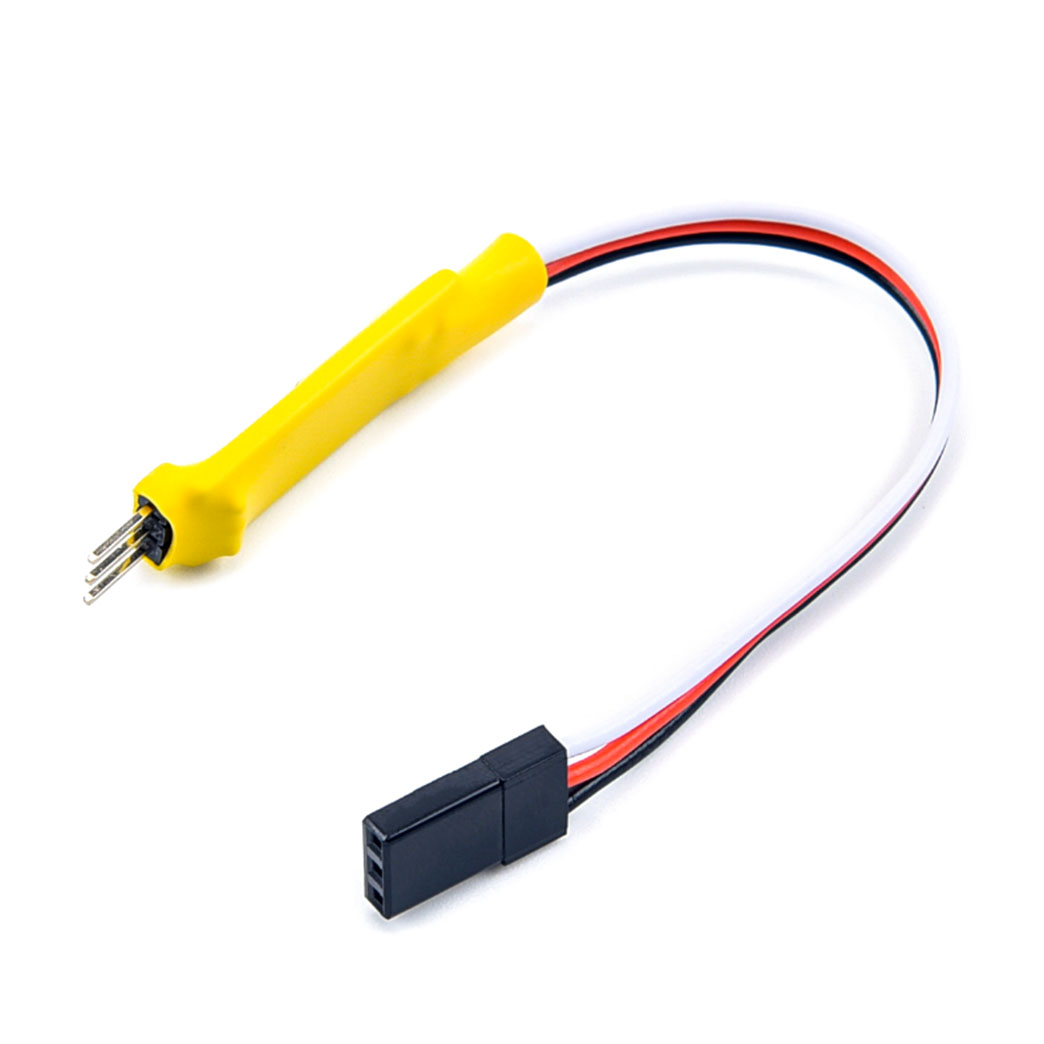

180° Servo Expander

SKU: C87
In Stock
€ 5,79
Some 180° servos require PWM values in the range of 500-2500uS to work in the full range. When using a PWM signal from a standard receiver with a range of 1000-2000uS, you will not use the entire 180° range of the servo. This servo expander expands the classic 1000-2000uS range to the 500-2500uS range. Just connect it between the RC receiver and the servo.

Key Features

  • Input voltage: 3.6-16V
  • PWM input range: 1000-2000uS
  • PWM output range: 500-2500uS

Package Includes

  • 1x Servo expander
