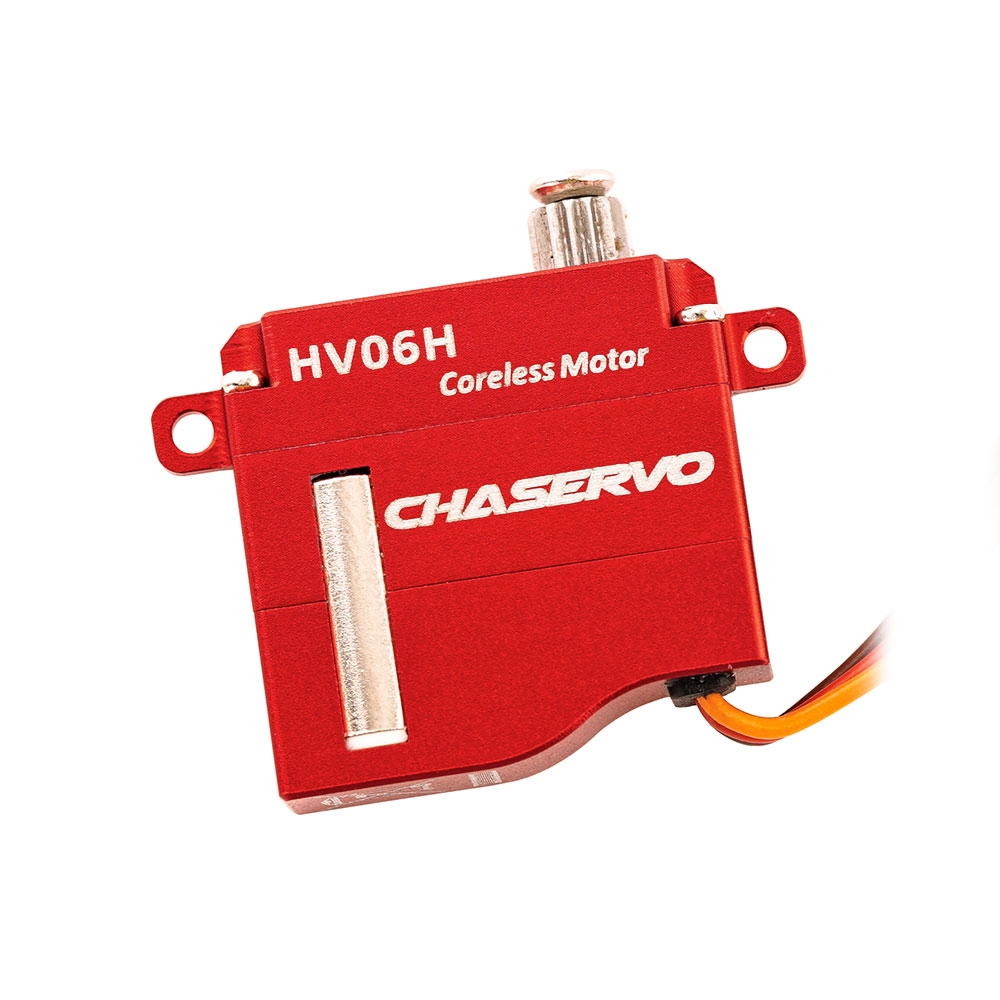

Chaservo HV06H
SKU: N47
The product can not be ordered.
Servo Chaservo HV06H is a quality digital servo with a Coreless motor and an aluminum case. The servo uses 2BB ball bearings. The voltage range is 6-8.4V and can thus be powered directly from a 2S Lipo battery. It is mainly suitable for smaller airplanes, but it can be used wherever a small, powerful and fast servo is needed.
Key Features
- Weight: 6g
- Dimensions: 19x6x18.5 mm
- Supply voltage: 6-8.4V
- Nominal voltage: 8.4V
- Speed: 0.07sec/60°@6V, 0.06sec/60°@7.4V, 0.05sec/60°@8.4V
- Torque: 1.5Kgf.cm@6V, 2Kgf.cm@7.4V, 2.4kgf.cm@8.4V
- Servo cover: Aluminum alloy
- Motor type: Coreless DC
- Gears: Metal
- Type: Digital
- Ball bearings 2BB
Package Includes
- 1x Servo
- 1x Set of levers and screws
