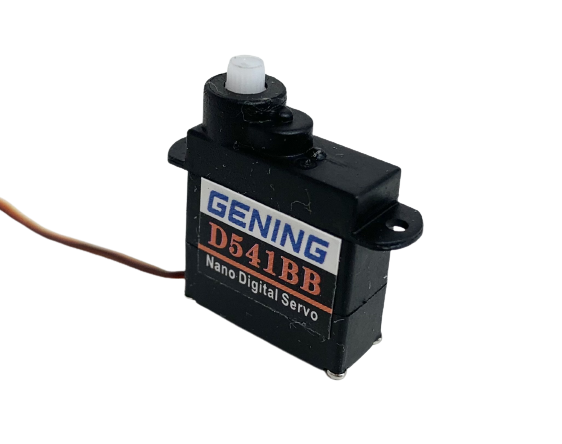

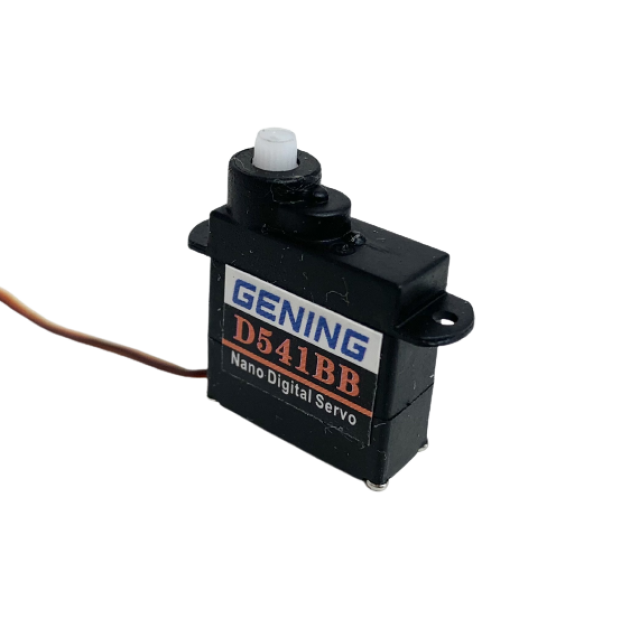

D541BB Nano Digital

SKU: N02

The product can no longer be ordered.

D541 is a great digital micro servo featuring high torque and speed. Precise centering makes this servo popular with indoor F3P and 3D flyers.

Key Features

  • Torque: 0.7kg.cm @4.8V
  • Torque: 0.8kg.cm @6.0V
  • Speed: 0.09sec/60degrees@4.8V
  • Dead Band Width: ≤3us
  • Current Draw: Idle:0.13A; Running:0.35A; Stall:0.43A @4.8V
  • Servo Lead Gauge: 30#
  • Micro Coreless Motor
  • Dimensions: 19x19.5x8mm
  • Weight: 4.7g

Package Includes

  • 1x Servo
  • 1x Accessories
