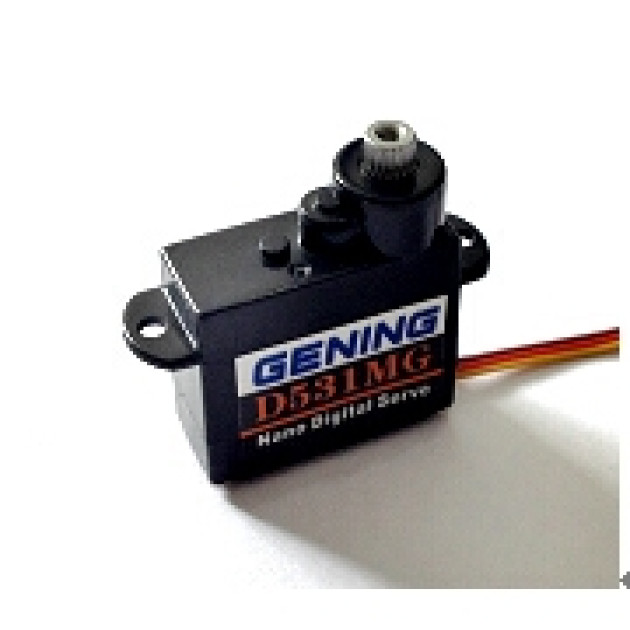

D531 MG Nano Digital

SKU: N011

The product can no longer be ordered.

D531 is a small, light and precise digital servo suitable for the smallest and lightest models - e.g. of the Mini or Indoor Series. Features a set of metal gears.

Key Features

  • Torque: 0.5kg.cm @4.8V
  • Torque: 0.6kg.cm @6.0V
  • Speed: 0.09sec/60degrees@4.8V
  • Dead Band Width: ≤3us
  • Current Draw: Idle:0.12A; Running:0.32A; Stall:0.42A@4.8V
  • Servo Lead Gauge: 30#
  • Micro Coreless motor
  • Bearing Type: Top Ball Bearing
  • Dimensions 19x17.5x8mm
  • Weight: 5 g
