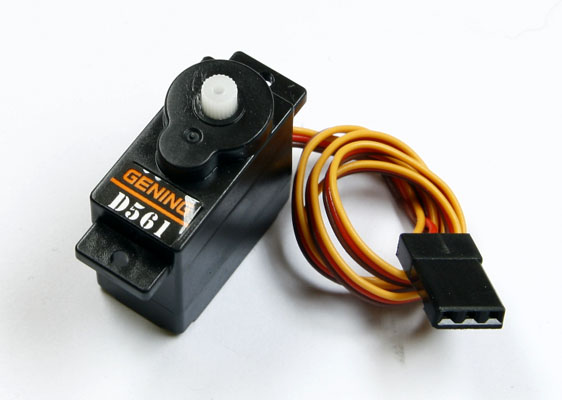

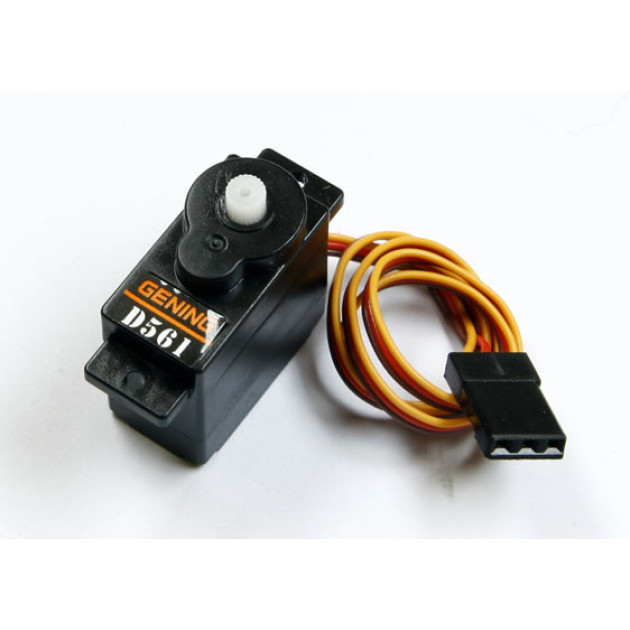

D561 Digital
SKU: N03
The product can no longer be ordered.
D561 is an excellent digital servo with good centering and provides extremely accurate control. It outputs strong torque and fast reaction speed when in use. D561 suits all kinds of micro-aircraft for 3D flight, e.g. used as rudder/elevator servo on 3D EPP, as ailerons servos on F3P, or directly on small gliders and mini electric helicopters. In RC field, this nano servo is believed to be a smart choice for 3D flying fun.
Key Features
- Torque: 1.2kg.cm @4.8V
- Torque: 1.3kg.cm @6.0V
- Operating Speed(4.8V): 0.08sec/60°
- Operating Speed(6.0V): 0.07sec/60°
- Dead Band Width: ≤3us
- Micro Coreless Motor
- Dimensions: 21.3x11.6x22.8mm
- Connector Wire Length: 250mm
- Weight: 6.5g
