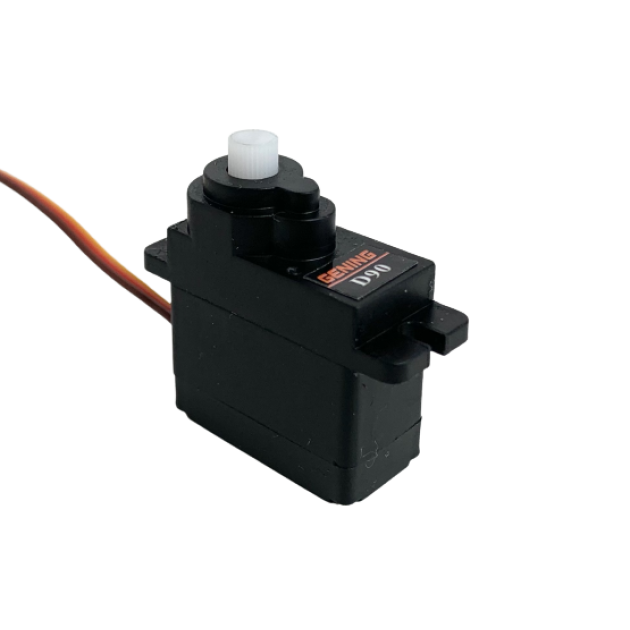

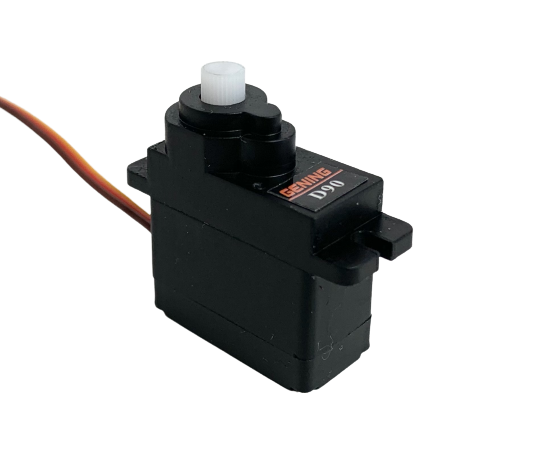

D90 Hi-Speed Digital

SKU: N05

The product can no longer be ordered.

The D90 is a high speed and sensitive digital servo for Helicopter and 3D airplanes (for example 3D EPP), helicopters Gyro Operation. The High-Speed Digital Servo provides extremely accurate neutral position. These servos are tailored for 3D fixed wing planes and micro electric helicopters.

High fidelity MCU and excellent algorithm make it work smoothly and keep high frequency noise minimized. The Digital Servos adopt Frequency Conversion Technology which guarantees cool operating temps under wild and long time 3D flight! This advanced technology also provides lower power consumption and guarantees the durability of D90 Digital Servos. The digital servos have excellent performance as tail servos and can bring you lots of 3D flying fun.

Key Features

  • Operating Voltage: 4.8-6.0 Volts
  • Operating Speed (4.8V): 0.09sec/60°
  • Operating Speed (6.0V): 0.08sec/60°
  • Torque (4.8V): 2.0kg.cm
  • Torque (6.0V): 2.2kg.cm
  • Dead Band Width: ≤3usec
  • Dimensions: 23.6 x 11.8 x 22mm
  • Weight: 9.8g
  • Bearing Type: Top Ball Bearing
  • Gear Type: Carbon-nylon Gears
  • Motor Type: 3-Pole Neodynium Magnet
  • Connector Wire Length: 180mm
  • Current Drain (4.8V): 5.0mA/idle and 130mA no load operating
  • Current Drain (6.0V): 6.0mA/idle and 140mA no load operating
