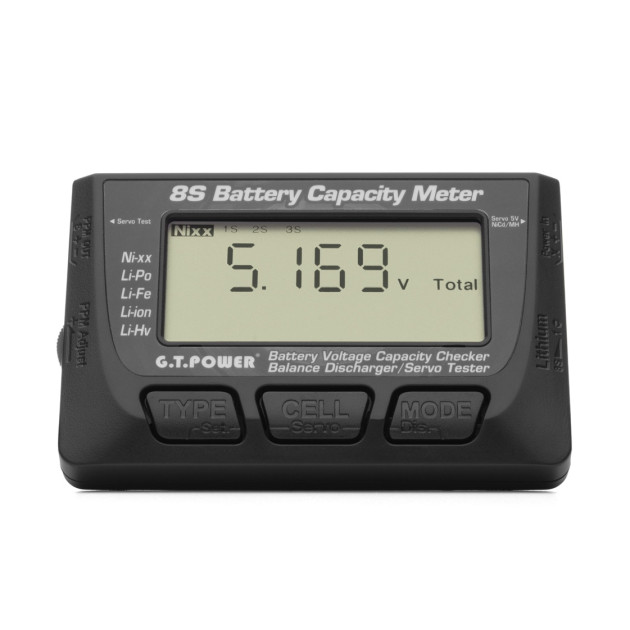

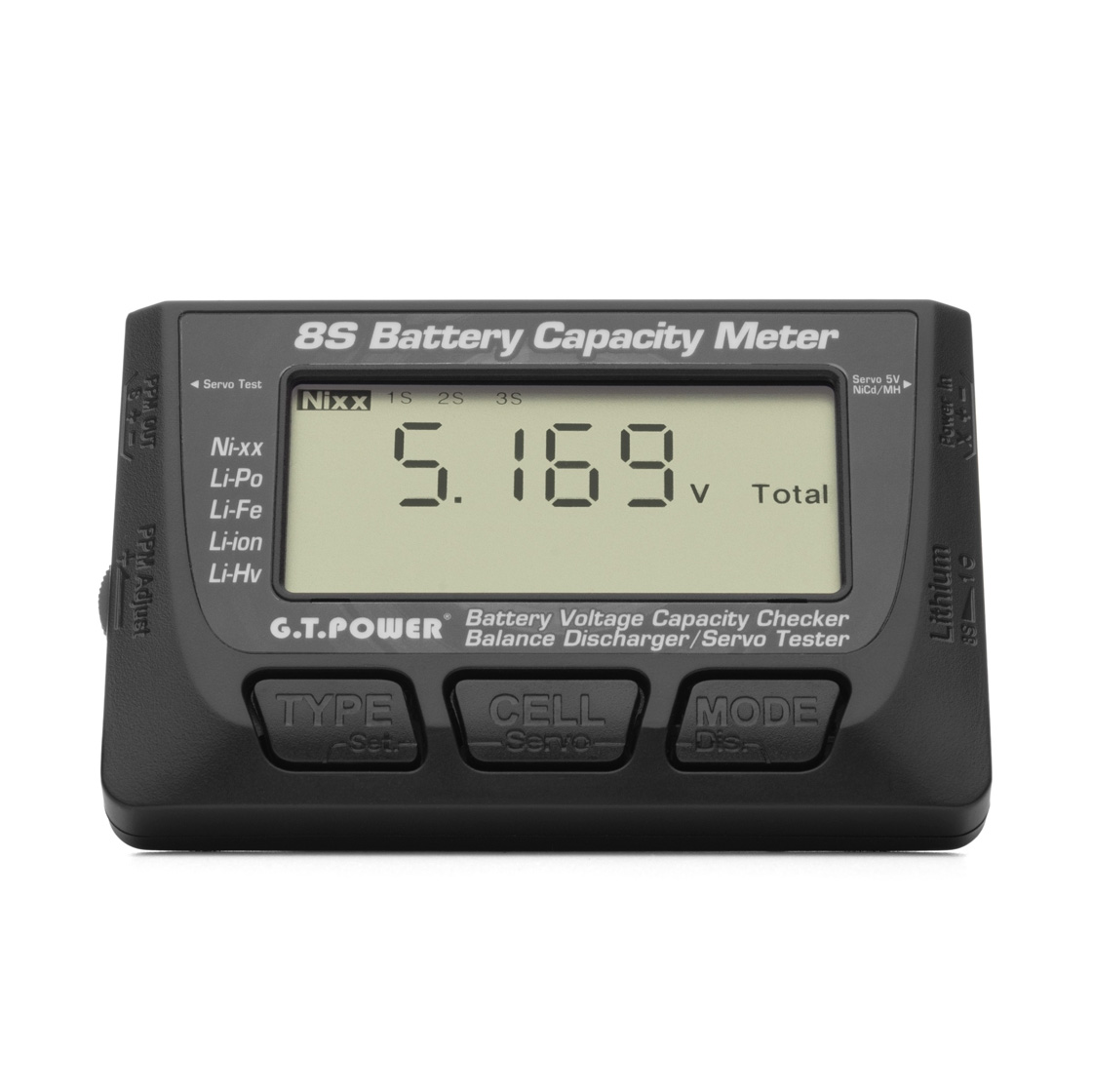

G.T. Power Lipotester/Servotester

SKU: C91
In Stock
€ 15,39
Multifunctional measuring device enabling battery condition testing, discharging and balancing Lithium batteries and testing servos and speed controllers.

Lithium battery testing

The device enables the measurement of 2-8S lithium batteries (Li-Po, Li-ion, LiFe, LiHV) without the need for additional power supply. To test 1S accumulators, you need to connect 4 NiXX battery or UBEC stabilizer output 5V to NiCd/MH socket. The battery under test is connected with a JST-XH balance connector.

The tester measures and displays:
  • total battery voltage and residual battery capacity (state of charge - approximate data)
  • voltage and residual capacity of individual cells of the set
  • voltage and capacity of the cell of the set with the highest voltage
  • voltage and capacity of the cell of the set with the lowest voltage
  • cell numbers with the highest and lowest voltage and the voltage difference between them
Testing of NiCd and NiMH batteries

Testing 4-8S NiCd and NiMH batteries do not require an additional power source. For testing NiCd and NiMH batteries with less than 4 cells, a 2-8S lithium battery must be connected.

The tester measures and displays:
  • total battery voltage
Discharger/Balancer

Lithium batteries can be discharged/balanced in two modes (the device is powered from a discharged battery):
  • Discharge with balancing – the tester discharges the connected lithium battery to a pre-set voltage (2.0-4.2 V/cell) while equalizing the voltage of the individual cells
  • Autonomous balancing - the device discharges the cells of the set to the level of the cell with the lowest voltage
Servo tester
The supply voltage for the servo tester function is 5-6 V (four-cell NiMH or NiCd battery or 5V UBEC output). In the case of testing ESCs with BEC, a separate power supply is not required. The servo tester generates control pulses with a logic "1" level of 4.7-5.0 V (depending on the supply voltage 5-6 V). Depending on the type of servo or ESC, you can choose the pulse frequency of the servo tester signal: 50Hz (for analog servos and regular ESCs for airplanes, cars and ships) and for digital servos and ESCs for multicopters 60 Hz, 100 Hz, 125 Hz, 200 Hz, 300 Hz .

The servo tester has three basic operating modes:
  • Manual adjustment of the servo position with a rotary knob - the range of control pulse widths in this mode can be selected to the basic 1000-2000 µs or extended 500-2500 µs.
  • Automatic servo overrun – in this mode, the servo automatically overruns within the set range (basic 1000-2000 µs or extended 500-2500 µs) at a manually adjustable speed.
  • Neutral setting: – in this case, the servo tester provides a signal with a fixed pulse width of 1500 µs.

Key Features

  • Input Voltage: 2-8S LiXX, 4-8S NiXX (or 5V BEC)
  • Discharge voltage: 2-4.2V per cell
  • PWM pulse width for neutral: 1500uS
  • PWM Range: Basic 1000-2000uS / Advanced 500-2500uS
  • PWM frequency: 50/60/100/125/200/300Hz
  • Size: 82x55x16mm
  • Weight: 51g

Package Includes

  • 1x Tester
