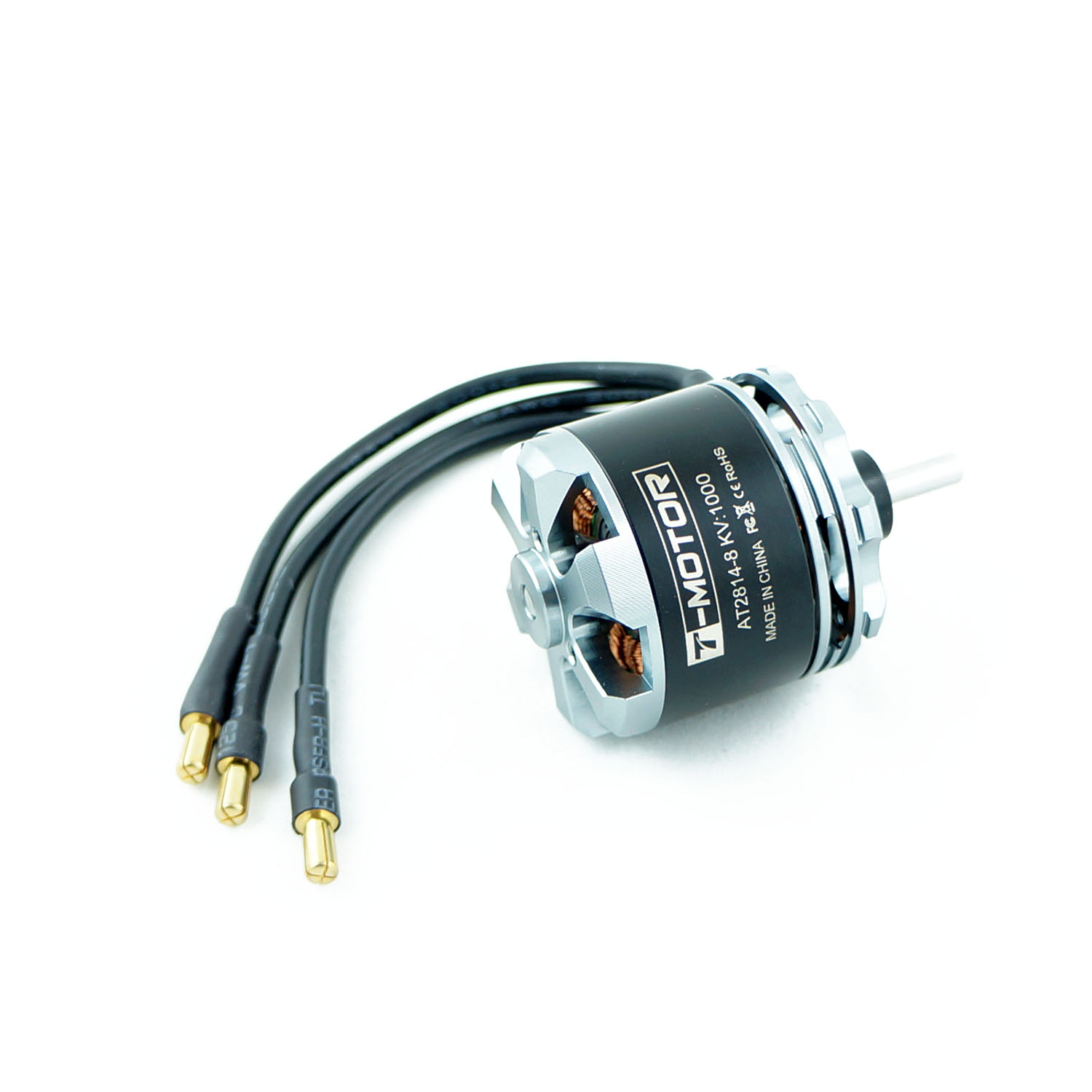

T-Motor AT 2814/1000

SKU: A08
In Stock
€ 47,80
High quality, powerful motor suitable for larger aircraft in the Outdoor category. The motor is equipped with a mounting cross for easier mounting on the airplane and a 6mm shaft adapter for propeller mounting. The motor has 10cm long 1.5mm2 (16AWG) cables terminated with bullet connectors.

Key Features

  • Configuration: 12N14P
  • Stator Diameter: 28mm
  • Stator Length: 14mm
  • Shaft Diameter: 4mm
  • Motor Dimensions: 35 x 36 mm
  • Weight: 109 g (with cables)
  • Wires: 100mm  1,5mm2 (16AWG)
  • Kv: 1000
  • Idle Current: 1,2A
  • Number of LiPo Cells: 2 - 4s
  • Maximum Continuous Power 180s: 370 W
  • Maximum Continuous Current 180s: 35 A
  • Maximum Efficiency Current: 8-28A > 73%
  • Internal Resistance: 68mOhm

Package Includes

  • 1x Motor
  • 1x Mounting cross
  • 1x Propeller adapter - 6mm
  • 1x Set of screws
