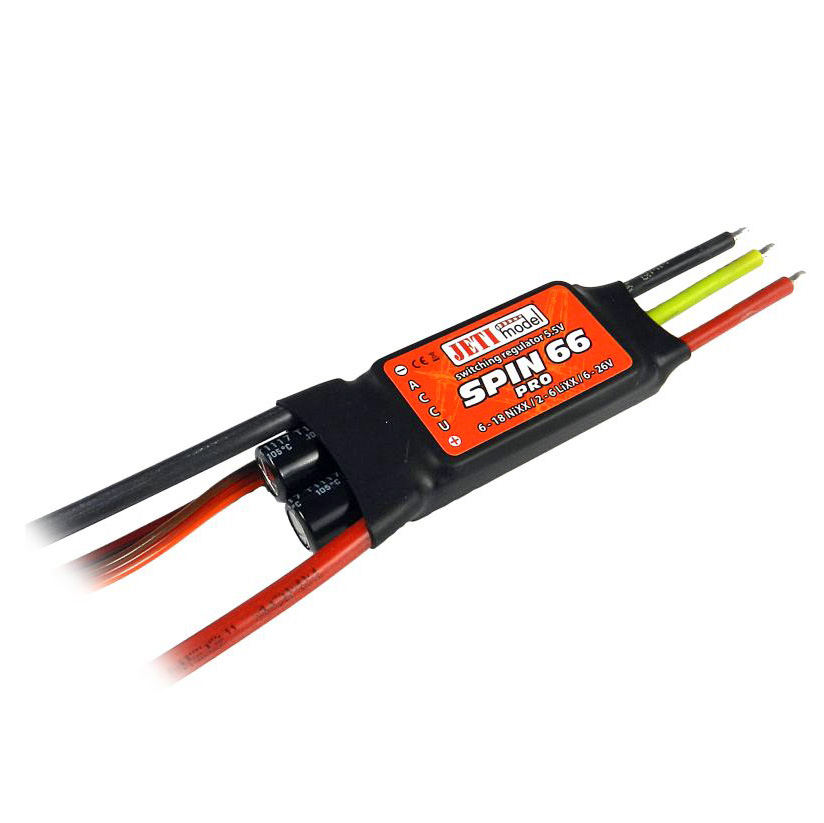

JETI SPIN 66 Pro

SKU: R46
In Stock
€ 119,58
The SPIN pro controller series is a successor of the former brushless series of SPIN controller family. The new line with the attribute PRO offers in comparison with the predecessors increased adjustment possibilities like automatic motor timing, directly in volts practicable shut-off voltage adjustments, tuning of start-up properties for different motor types as well as new possibilities of mode activation for setting up autorotation of helicopters.
SPIN pro controller include a new type of voltage stabilizer for receiver and servos, the so called switching BEC with an output voltage of 5.5 V. The use of this feature opens the way to the use of BEC for models operating at higher voltages. A significant factor is that the BEC circuit maintains its full current capability right up to the maximum voltage.
Manual for download here.

Key Features

  • Weight: 56g
  • Dimensions: 52x25x14mm
  • Constant current: 70A
  • Telemetry: Yes
  • Operating temperature range: -10 to 85 ° C
  • Supply voltage: 5 - 25.2V
  • Max. current BEC: 5A
  • BEC voltage: 5.5V
  • Maximum number of servos: 8
  • Resistance in closed state: 2x1.00mΩ
  • Number of power transistors: 48
  • Input capacity: 2x470µF

Package Includes

  • 1x JETI SPIN 66 Pro
