MenaceRC COB LED + Driver

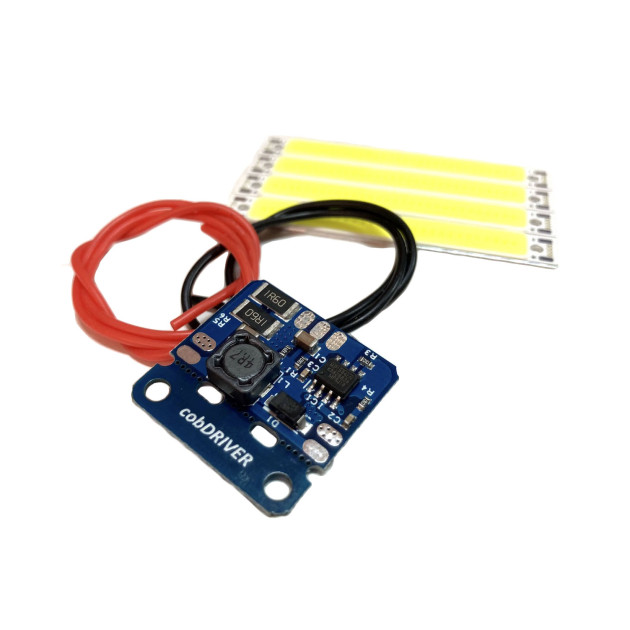

MenaceRC COB LED + Driver is a combination of four very bright LED strips and a control board (driver) for voltage regulation and reliable strip function. The driver can power 2-8 LED strips and is usually powered by a 2-6S Lipo battery. The minimum voltage depends on the number of LED strips used. The driver supports switching on / off the LED strips using the EN pad. When the EN pad is connected to 0V (ground), the LEDs are off. If you want to control the LEDs using an RC transmitter, you need to use an RC switch.

The driver can be fastened with screws or double-sided adhesive tape. The spacing of the holes is 20mm. The screw mounting part can be broken off to reduce the size of the driver.

English manual here.
