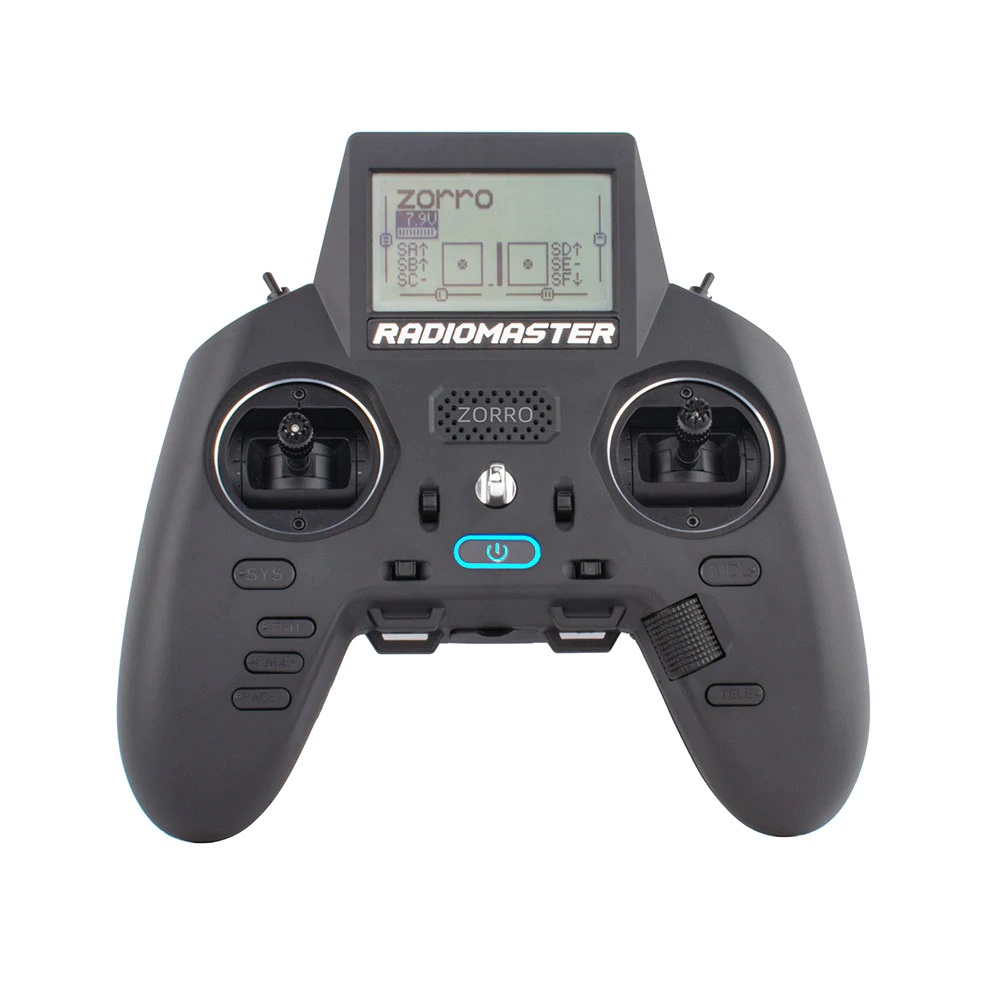

Radiomaster Zorro 4v1


The product can no longer be ordered.

The Radiomaster Zorro 4in1 is a feature-packed radio with an excellent price / performance ratio. Radiomaster Zorro is available in several versions. This 4in1 version includes a 4-chip multiprotocol transmitter module that supports Flysky, Frsky, DSM, Syma, Devo and many other protocols. The full list can be found here. Zorro is based on EdgeTX firmware, which is based on the well-known OpenTx. As with other EdgeTx / OpenTx radios, the radio settings are solved using buttons and a roller. The information is then displayed on the LCD screen.

The main advantages of Zorro are small size, Hall gimbals, Nano shaft for external modules, USB-C for charging and connection to a PC, plenty of switches, rubber fingerboards, headphone output and the possibility of powering external 2S batteries. The radio is powered by two Liion 18350 batteries (not included). The radio comes in mode 2, but can be easily changed to mode 1.

Key Features

  • Dimensions: 170x159x108mm
  • Weight: 350g
  • Frequency band: 2.4GHz
  • Transmitter module: 4in1 Multiprotocol
  • Transmitting power: max 20dBm
  • Consumption: 160mA@8.4V DC
  • Input voltage: 6.6-8.4V DC (2x 18350)
  • Firmware: EdgeTX
  • USB charging
  • Gimbaly: Hall
  • External slot: Nano

Package Includes

  • 1x Transmitter
  • 1x USB-C cable
